EKS Logs
Amazon EKS clusters commonly ship their container logs with Fluent Bit, writing them into an S3 bucket. The AWS EKS Logs template reads that bucket the same way the other AWS templates do — the bucket raises an S3 notification, the notification lands on an SQS queue, and the platform consumes the queue — so the cluster keeps its existing Fluent Bit output and Fluency picks the objects up from storage rather than from the cluster.
AWS-side setup
Fluent Bit output
The cluster keeps its existing Fluent Bit deployment; configure its S3 output (bucket, prefix and rotation) per the aws-for-fluent-bit documentation. The stream worth shipping is container stdout/stderr.
EKS control-plane logs (API server, audit, authenticator, controller manager and scheduler) don't pass through Fluent Bit. EKS sends them only to CloudWatch Logs, to the /aws/eks/<cluster-name>/cluster log group, so collect them as described in Amazon CloudWatch.
S3 notification and SQS queue
The bucket must notify an SQS queue on object creation. This is the same wiring as every other S3-delivered AWS source; see AWS S3 (with SQS) for how it works and its constraints.
Access
Use the AWS role registered under Settings → Advanced → AWS Roles, and select it in the form's Pre-defined AWs Role. If the account has no role yet, Connecting to AWS sets one up. Run its S3 template against the bucket Fluent Bit writes to, which creates the queue, the notification, and the read grant in one stack. An IAM user's access key and secret also work, as the alternative method.
Install the Application

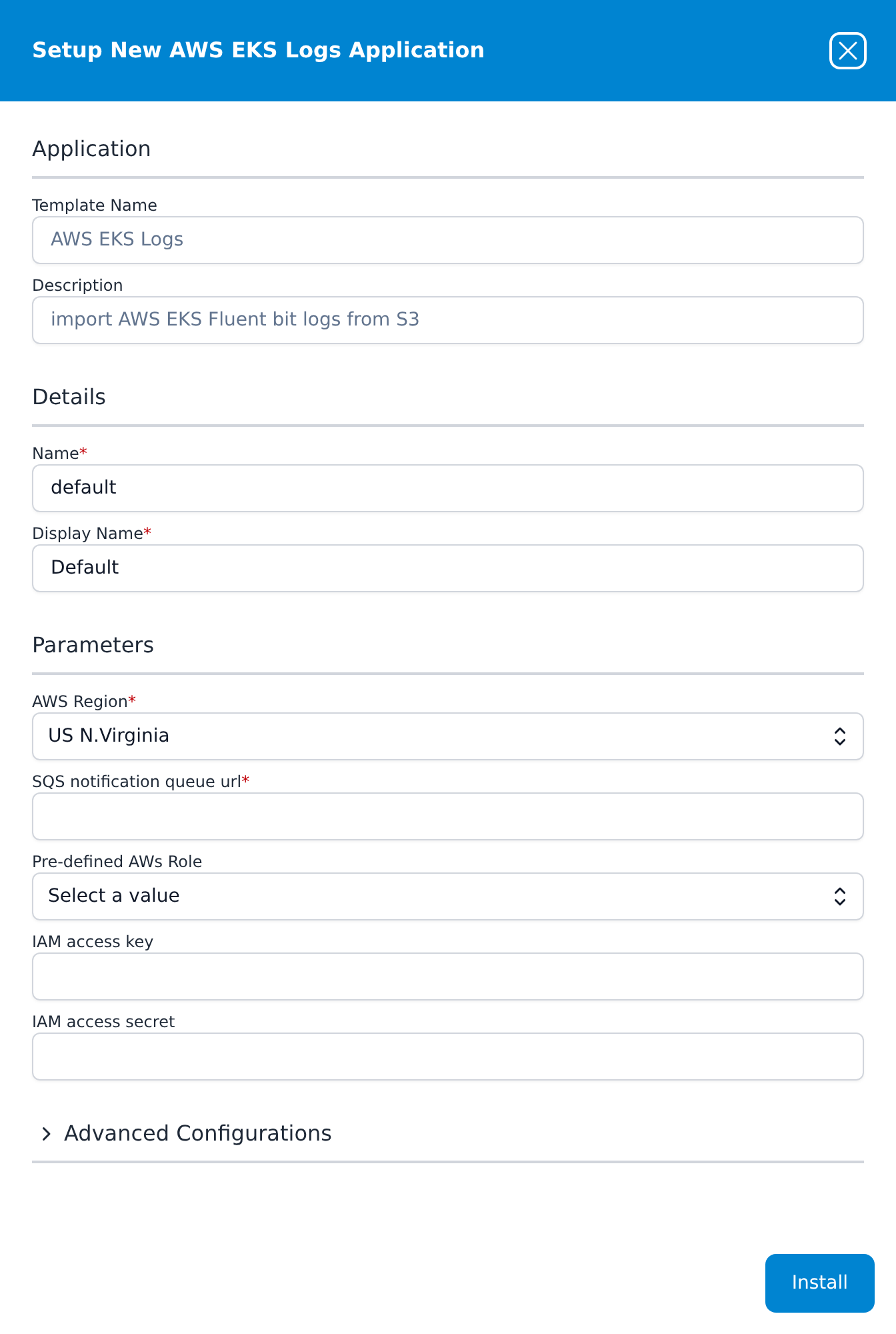

Go to Platform → Applications → Install Application From Template and choose AWS EKS Logs from the AWS Services category. (Earlier releases listed the same template as EKS Logs; the template ID, AWSFluentbitS3, did not change.) The form asks for:
| Parameter | Notes |
|---|---|
| AWS Region | Drop-down, opens on US N.Virginia. The region the queue lives in. |
| SQS notification queue url | The full queue URL, not the ARN. |
| Pre-defined AWs Role | Optional on the form, but the recommended credential: the display name of a role registered under Settings → AWS Roles. See Connecting to AWS. |
| IAM access key | Optional. Alternative: an IAM user's access key, entered directly. Use instead of a role, not as well as. |
| IAM access secret | Optional. |
| datalake | Pre-filled managed. |
| datalake index name | Pre-filled default — change it. Leaving it at default on more than one application will collide, and the second install aborts. |
Press Install. The application then appears in the Installed Applications view, where its badge reads Running once the pipeline is up.
