Cisco ASA

Fluency collects the system log of a Cisco Secure Firewall ASA (Adaptive Security Appliance): connections built and torn down with their byte counts, address translations, packets denied by an access list, AAA authentications, and AnyConnect VPN sessions starting, being assigned an address and ending. Every ASA message carries a numeric message ID — %ASA-6-302013 is a TCP connection being built, at severity 6 — so each kind of event has a stable name, which makes this feed unusually good material for detection: VPN logins from somewhere new, a host suddenly hitting a deny rule hundreds of times, a session teardown with an unusual byte count.

The mechanism is syslog push. The ASA sends each message to a syslog listener as it happens, and the Cisco ASA Syslog application template supplies the parser that claims and structures the ASA's messages. There is no credential anywhere in this integration. What joins the two halves is a destination — an address and a port, plus a CA certificate if the transport is TLS — and Fluency is the side that issues it, so the halves run in the opposite order to an API integration:

  1. In Fluency — read the syslog destination, download the CA if you will use TLS, and install the Cisco ASA Syslog application, so the parser is in place before the first message arrives.
  2. On the ASA — trust the CA, point logging at the destination, choose what is sent, and save the configuration.
TCP and TLS syslog can stop the firewall passing traffic

By default, an ASA sending syslog over TCP or TLS stops allowing new connections through the firewall when it cannot reach the syslog server. Cisco's own wording is that "new connections through the ASA are blocked", and since ASA 8.3(2) a full logging queue has the same effect. This is a deliberate security behaviour, not a fault, and it is switched off by logging permit-hostdown, which is off by default.

Decide which behaviour you want before you configure anything — Before you begin sets out the trade — and if you choose TCP or TLS, set logging permit-hostdown in the same change as the logging host line, not afterwards.

What arrives​

StreamHow it gets hereWhat decides its contentsContents
ASA system logThe ASA pushes syslog to the listener as each message is generatedThe ASA's own logging configuration — chiefly the logging trap severity, and the log keyword on access-list entriesOne record per syslog message, with the message ID, its severity and — for the IDs below — the fields extracted from its text

The parser claims any message whose text starts with %ASA- (or %FTD-, below) and leaves everything else on the listener alone. It extracts fields from these message IDs; the severity is Cisco's default, and it matters because the ASA's logging trap setting selects messages by severity:

FamilyMessage IDs (default severity)Fields extracted
Connections302013 / 302015 built TCP / UDP (6), 302014 / 302016 teardown TCP / UDP (6), 302020 / 302021 ICMP built / teardown (6)Direction, protocol, connection ID, source and destination interface, address and port, mapped (NAT) addresses; duration and bytes on teardown
Address translation305011 built, 305012 teardown (6)Translation type, protocol, interfaces, addresses and ports; duration on teardown
Access lists106023 denied by access group (4), 106100 access-list entry hit (6 by default), 106103 denied for user (4)Action, protocol, interfaces, addresses, ports, access-group or access-list name, hit count
Denied packets106001, 106006, 106007 (2); 106010, 106014 (3); 106012, 106015 (6); 106021, 106022 (1); 110002 (6)Action, protocol, addresses, ports, interface, TCP flags or reason
Authentication (AAA)113003, 113004, 113005, 113008, 113009, 113010, 113011 (6); cut-through proxy 109201–109213 (3–6)User, AAA server, user IP, group policy, outcome
VPN sessions113039 AnyConnect parent session started (6), 722051 address assigned to session (6), 113019 session disconnected (4), 725001 SSL handshake started (6)Group, user, public IP, assigned IPv4 and IPv6 addresses, with a GeoIP lookup on the public IP for 722051. For 113019, only Group, Username and IP — the session's duration, byte counts and disconnect reason stay in the message text

Every other ASA message arrives too, just without extracted fields. It is stored with its message ID, its severity name and the whole message text, plus the marker "error": "Unknown Syslog message ID" — which reads like a fault and is not one. Several messages worth keeping fall into this group, so search for them by ID: 111008 and 111010 (an administrator ran a command or changed the configuration, severity 5), 605004 / 605005 (management login denied / permitted, 6), 611101 / 611103 (management user authenticated / logged out, 6 / 5), and 201008 (the ASA refusing new connections, 3 — see Troubleshooting).

Every record carries @eventType CiscoASA and two tags — ASA, and the message ID as ASA-302013 — with the parsed values under @fields: @fields.fid is the message ID, @fields.msg_type the severity name (Informational, Warning, …). @source names the firewall, which is why step 6 sets a device ID.

What the ASA decides before anything is sent​

No parser can extract a message the ASA never generated, or fields the ASA did not write into it. These ASA settings decide that:

  • logging trap severity. The ASA sends the chosen severity and everything more severe. Connections, NAT, AAA and VPN session messages are almost all severity 6, so informational is the level this integration is built for. At warnings (4) you keep access-list denies and lose every connection record.
  • The log keyword on access-list entries. Denied packets log 106023 by default; a permitted flow logs 106100 only if its access-list entry carries log.
  • The interface named in logging host. Cisco: if syslog is configured on an interface with management-only access enabled, the data-plane messages 302015, 302014, 106023 and 304001 are dropped. The symptom is an ASA whose admin events arrive and whose traffic never does.
  • Disabled messages. no logging message <id> stops a message being generated at all. show logging message lists the messages that are disabled or have a changed severity.
  • NetFlow export (NSEL). An ASA exporting NetFlow is often set to logging flow-export-syslogs disable, which stops the connection messages (302013–302016) and several deny messages being generated as syslog, because the flow records carry the same information. If show running-config logging shows that line, this integration receives no connection records.
  • names. Where the configuration uses the names command, messages carry the configured name in place of the address. The connection and translation patterns match addresses, so they extract nothing from those messages.
  • Usernames in failed logins. By default the ASA masks the username in a failed-authentication message when it cannot tell whether the username is valid — ASDM's Hide username if its validity cannot be determined — so that a password typed into the username field does not end up in the log. no logging hide username turns that off; it is a privacy decision as much as a detection one.
Volume lives in connection and translation records

At informational, the connection (3020xx) and translation (30501x) messages are nearly all of the volume on a busy firewall — a build and a teardown for every flow. If the volume has to come down, cut deliberately with a message list (step 7) rather than by lowering the severity, because the severity cut takes the whole connection record with it. Translation messages are usually the first to go when the ASA is not doing NAT that matters to you; the teardown messages (302014, 302016) are the last, because they carry the duration and byte counts.

Firewall Threat Defense​

The parser also claims %FTD- messages from Cisco Secure Firewall Threat Defense (FTD), including the FTD connection events 430002 and 430003, whose Name: value pairs each become a field. An FTD device managed by Firewall Management Center is not configured with the commands on this page — its syslog destination is set in Management Center's platform settings — but it is parsed by the same template. The message IDs and tags keep the ASA- prefix.

Before you begin​

Privileged access to the ASA — configuration mode at the CLI, or ASDM with a privilege-15 account. In multiple-context mode, logging is configured per context.

A path from the ASA to the destination. The ASA sends from the interface you name in logging host. To the cloud endpoint, that interface needs outbound access to your tenant's syslog domain on the port you will use. To a collector appliance, it needs a route to the collector on your own network — the usual choice when the ASA's management network has no route out.

A decision about the transport. This is the decision that matters most on this integration, because on an ASA the choice of transport has a consequence for the firewall itself:

TransportEncryptedWhen the destination is unreachableUse it when
UDPNoMessages are lost silently. Traffic is unaffected.The ASA sends to a collector on the same trusted network.
TCPNoThe ASA blocks new connections through the firewall, unless logging permit-hostdown is set.Rarely — if you accept the TCP behaviour, TLS gives you encryption for the same price.
TLS (secure)YesThe ASA blocks new connections through the firewall, unless logging permit-hostdown is set.Sending to the cloud endpoint over the internet.

ASA logs are not low-sensitivity — they carry internal addressing, NAT mappings and VPN usernames — so send to the cloud endpoint over TLS. Then decide logging permit-hostdown:

  • Set it (recommended). The firewall keeps passing traffic when the syslog server is unreachable, and you lose log messages for as long as it is. Cisco's guidance agrees: "Unless required, we recommended allowing connections when syslog messages cannot be sent or received."
  • Leave it off only where a compliance regime genuinely requires the firewall to stop rather than pass unlogged traffic. Then an outage of the syslog server, its network path, or the Fluency listener is an outage of the firewall. Write that decision down where your operations team will find it.

Three Cisco limits narrow the choice further:

  • IPv6 cannot be used for secure (TLS) logging. Send to an IPv4 address.
  • A standby unit in a failover pair sends nothing by default, and never over TCP or TLS. logging standby (ASDM: Enable logging on the failover standby unit) makes it send over UDP, which roughly doubles the volume for messages the active unit is already sending. Leave it off: the active unit carries the traffic, and its log is the one that matters.
  • Ports must be 1025–65535 unless you take the protocol's default (514 for UDP, 1470 for TCP).

Whether the ASA already sends syslog somewhere else. The severity filter — logging trap, or a message list — applies to every syslog server the ASA sends to. Cisco: "It is not possible to have two different lists or classes being assigned to different syslog servers." If the ASA already feeds another collector at warnings, setting informational for Fluency raises it for that collector too, so agree the change with whoever owns it. Cisco's guidelines also suggest limiting the level to warnings once two or more syslog servers are configured, to spare the ASA's resources; this integration's connection records are all at informational, so that is a trade to make knowingly rather than by default.

Part 1 — Fluency​

1. Read the destination​

For the cloud endpoint, open Platform → Administration → Syslog Ports. The card shows your tenant's Domain, the Port range allocated to it, and one row per protocol with the port it listens on — a dash means that protocol is not enabled.

Syslog Ports page showing the domain, port range, a Syslog TLS port of 12000, dashes for the other three protocols, and the Update Config, Delete Syslog Config and Download CA buttons

Take the port from the row that matches your transport:

  • TLS — the Syslog TLS row. Not TLS RFC 6587. The two TLS listeners expect different framing, and an ASA frames each message with a newline, which is what Syslog TLS expects. Sent to the RFC 6587 listener, newline-framed messages are dropped without an error on either side.
  • UDP — the Syslog UDP row. TCP — the Syslog TCP row.

If the row you need shows a dash, click Update Config, tick that protocol and Save. Adding a protocol does not disturb the devices already sending; removing one does — see Maintenance.

The ASA needs an address, not the domain. logging host takes an IP address — Cisco's command reference describes the field as "the IP address (IPv4 or IPv6) of the syslog server" and offers no hostname form — so resolve the Domain yourself:

nslookup <your-tenant>.syslog.ingext.io

The domain is an alias for a load balancer and resolves to several addresses. Choose one IPv4 address and note which. Do not add a logging host line for each: the ASA sends every message to every configured host, so three lines would store everything three times. Because the ASA never looks the name up again, it will keep sending to that address if the domain's addresses ever change — Maintenance covers what that looks like.

For a collector appliance, read the listener from the collector's configuration (Syslog ports). A default collector listens on udp 514, tcp 514, tls 6514 and tls (RFC6587) 7514. From an ASA, use udp 514 or tls 6514: TCP to port 514 falls outside the ASA's permitted range, and the RFC 6587 listener has the framing problem described above. A collector is addressed by its IP, so there is nothing to resolve.

2. Download the CA (TLS only)​

On the same page, Download CA (ca.crt). For the cloud endpoint the file is a bundle of five public root certificates — Amazon Root CA 1, 2, 3 and 4 and Starfield Services Root Certificate Authority – G2 — because the endpoint presents a publicly trusted certificate that chains to one of them. An ASA trusts only the CAs it has been given, and an ASA trustpoint holds a single CA certificate, so step 4 picks the right one out of this file.

A collector appliance's TLS listener presents its own certificate; trust the CA that issued it in the same way.

3. Install the application​

Go to Platform → Applications → Install Application From Template and choose Cisco ASA Syslog from the On-Premise IT category. The template supplies the parser and builds the pipeline — there is no source to add, no processor to attach, and no sink to wire by hand.

ParameterNotes
datalakePre-filled managed.
datalake index namePre-filled CiscoASA. Two applications writing to the same index name in the same lake will collide, and the second one aborts.

Both sit in the collapsed Advanced Configurations row below the Parameters heading, which is otherwise empty — expand the row to reach them. The defaults are usually right.

Setup New Cisco ASA Syslog Application panel, with the Advanced Configurations row collapsed under an empty Parameters section

Leave Name and Display Name at default / Default. One installation serves every ASA that sends to your listeners — the firewalls are told apart by @source, not by application — so a second firewall needs no second install.

Press Install. The application then appears in the Installed Applications view, where its badge reads Running once the pipeline is up.

Running here means listening. Until the ASA is configured, an empty index is the expected state and proves nothing either way.

Part 2 — Cisco ASA​

Every step below has a CLI and an ASDM tab; choosing one switches them all. The CLI commands run in global configuration mode (configure terminal). Either way, the configuration has to be saved at the end — nothing here survives a reload otherwise.

4. Trust the CA (TLS only)​

First find which root your endpoint chains to. From any workstation with OpenSSL:

openssl s_client -connect <your-tenant>.syslog.ingext.io:<Syslog TLS port> -showcerts </dev/null 2>/dev/null | grep -E '^ *[0-9]+ s:|^ *i:'

The last i: line names the certificate at the top of the chain the endpoint presents. Find the matching block in ca.crt — the file holds Amazon Root CA 1, 2, 3 and 4 and then the Starfield root, in that order, and openssl crl2pkcs7 -nocrl -certfile ca.crt | openssl pkcs7 -print_certs -noout prints their names in file order — and copy it, from -----BEGIN CERTIFICATE----- to -----END CERTIFICATE----- inclusive.

crypto ca trustpoint FLUENCY-SYSLOG-CA
 enrollment terminal
 revocation-check none
 exit
crypto ca authenticate FLUENCY-SYSLOG-CA

The ASA asks you to "Enter the base 64 encoded CA certificate", ending with a blank line or the word quit; paste the block. It then shows the fingerprint and asks whether to accept the certificate — answer yes. show crypto ca certificates FLUENCY-SYSLOG-CA confirms the import.

  • enrollment terminal makes this a paste-in trustpoint. The ASA enrols no certificate of its own: secure syslog is one-way TLS, where the ASA checks the server and presents nothing.
  • revocation-check none stops the ASA trying to reach the root's revocation servers before it will connect. That is a real reduction in checking, and normal for a root used to identify one server — but it is your decision.
  • If you cannot run the openssl check, create one trustpoint per certificate in the bundle — FLUENCY-SYSLOG-CA1 to FLUENCY-SYSLOG-CA5 — and paste one block into each. An unused trustpoint is harmless.

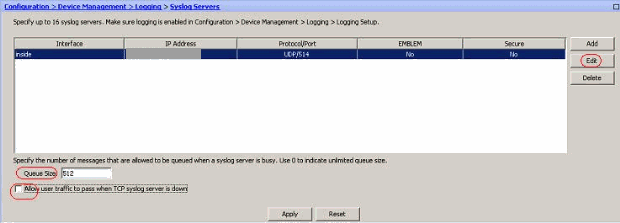

5. Guard against the fail-closed default (TCP and TLS only)​

Do this before the logging host line, in the same change: the moment a TCP or TLS host is configured without it, an unreachable destination stops new connections through the firewall. Skip it only if you decided in Before you begin that the firewall must fail closed.

logging permit-hostdown

6. Point logging at Fluency​

Use the address from step 1, the port from the matching row, and the name of the interface the ASA reaches it through — outside in the examples.

TLS to the cloud endpoint (recommended):

logging enable

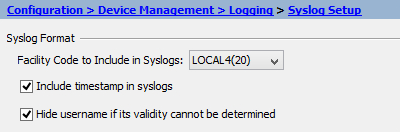

logging timestamp
logging device-id hostname
logging host outside 203.0.113.10 tcp/12000 secure

UDP to a collector on the local network:

logging enable
logging timestamp
logging device-id hostname
logging host inside 10.20.0.5

For plain TCP, use tcp/<port> without secure — and step 5 applies.

  • logging enable turns on logging to every configured destination.
  • logging host <interface> <ip> tcp/<port> secure is the destination. secure means TLS and is valid only with tcp/. With no protocol given, the ASA uses UDP on port 514.

The timestamp and the device ID go together, and both matter to the parser:

ASA configurationWhat arrives
logging timestamp and logging device-id hostnameRecommended. Parsed; the record is timed by the ASA's clock and @source is the firewall's hostname.
logging timestamp onlyParsed; @source is the address the message came from, so firewalls behind one NAT look like one source.
logging device-id without logging timestampParsed, but the device ID is wasted: with no timestamp in front of it, the listener reads it as the program name, so @source is still the sending address and the record is timed by arrival.
NeitherParsed; timed by arrival rather than by the ASA, and @source is the sending address.
Any of the above with format emblemNot parsed. See below.

Keep the ASA's clock on UTC — synchronised by NTP, with no clock timezone offset — or its events land hours away from where you search for them. The default logging timestamp format carries no time zone at all. logging timestamp rfc5424 (ASA 9.10(1) and later) parses the same way and is documented as UTC with a Z, but in practice it carries an offset such as +02:00 when the clock has a time zone, and an offset does not survive the listener: the local time is kept and the offset dropped. Where the clock has to stay on local time, the Time Adjustment recipe corrects it on the way in.

Do not use EMBLEM format (format emblem on the host line, ASDM's Log messages in Cisco EMBLEM format). It is a Cisco-specific, UDP-only layout that puts a colon straight after the syslog priority — Cisco: "when EMBLEM is enabled, the syslog message prints colon (:) after <PRI> field" — which the listener cannot read a header from, so the parser never claims the message. Check every logging host line, not just the one for Fluency: before ASA 9.24(1), EMBLEM on one host could change the format sent to the others (Cisco bug CSCwp17700).

7. Choose what is sent​

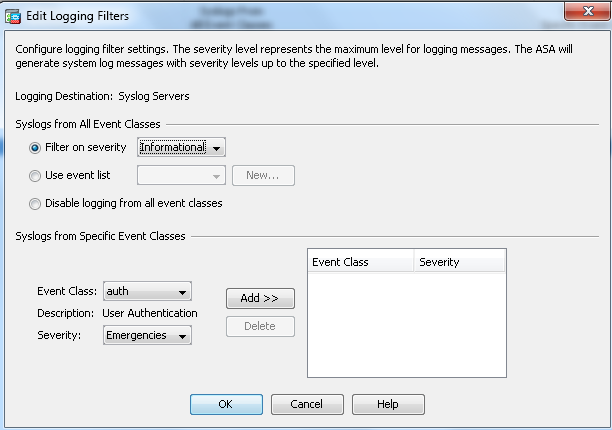

Send severity informational (6) and everything more severe — the level this integration is built for. Leave out debugging (7): Cisco warns that debug output "can render the system unusable", and it is not what the parser handles.

logging trap informational

To send a narrower set, define a message list and send that instead of a bare severity. A message is sent if it matches any line of the list:

logging list FLUENCY level warnings
logging list FLUENCY level informational class vpn
logging list FLUENCY message 302013-302016
logging list FLUENCY message 113004-113039
logging trap FLUENCY

Do not give the list a name that is, or begins like, a severity level — Cisco rejects it.

Two per-message controls are worth knowing. The first adds log to an access-list entry so its permitted flows produce 106100; the second stops one message being generated at all, and logging message 305011 reverses it:

access-list OUTSIDE_IN extended permit tcp any host 198.51.100.20 eq 443 log
no logging message 305011

8. Save the configuration​

write memory

Verify before you leave the ASA​

show logging is the ASA's own account of what it is doing:

show logging

Look for Syslog logging: enabled, a Trap logging: level informational, facility 20, <n> messages logged line, and your host under Logging to. The messages logged counter is the proof the ASA is sending: run the command twice a minute apart, and on a firewall carrying traffic the number climbs. For a TCP or TLS host, the line for the host also reports whether it is connected; after a destination goes away, Cisco says it takes about six minutes to change from Connected to Not connected, and about a minute to reconnect after the server comes back.

Then make a record you can find. Re-enter any harmless configuration command:

logging timestamp

Any command other than a show command produces %ASA-5-111008: User '<you>' executed the 'logging timestamp' command. — severity 5, so it is sent at informational. Confirm it is running looks for it.

If the ASA is producing faster than it can send, show logging queue reports discarded messages. Raise the queue with logging queue <n> (the default is 512) or narrow what is sent (step 7). On TCP and TLS without logging permit-hostdown, a full queue blocks new connections — another reason not to skip step 5.

While you are in show logging, check the Console logging line. Cisco's TAC note on ASA syslog warns that with logging to the serial console enabled, "all log generation on the ASA is rate limited to 9800 bps" — a limit that applies to every destination, including this one. If it is on at anything above a low severity, turn it off with no logging console.

Confirm it is running​

Three checks, in the order that narrows fastest.

1. The ASA says it is sending. The messages logged counter in show logging is climbing, and for TCP or TLS the host is Connected. If the counter climbs and nothing arrives, the problem is between the ASA and the listener; if it does not climb, the problem is on the ASA.

2. Fluency says the application is up. The card in Installed Applications reads Cisco ASA Syslog: Default with a Running badge. Remember that Running means listening; it says nothing about whether the ASA has been configured.

3. The test event is in the lake. Open Data Lake → Search, choose the CiscoASA index, and select the Default-Cisco_ASA facet configuration, which offers to set the query to @tags:ASA. Look for the 111008 message from the previous section:

@fields.fid:"ASA-111008"

Its ID facet should list several message IDs within minutes on a firewall carrying traffic, and its Source facet should show your firewall's hostname. An address there instead means logging device-id hostname is not set; one source for several firewalls means they all reach the listener through the same NAT and none of them carries a device ID.

On a firewall carrying traffic at informational, this feed is never quiet: connections are built and torn down every second. An ASA that produces nothing for an hour is a fault, not a slow day — unlike most event feeds, you can check this one by volume. See Confirm data is arriving for the three platform-side checks — application health, ingress volume and storage-side queueing.

Maintenance​

Nothing in this integration expires on its own, and there is no credential to rotate. What needs looking after is the destination.

Adding another firewall​

Point it at the same destination with the same commands. The installed application already parses it, and its hostname distinguishes it under @source. Give every firewall a distinct hostname, or use logging device-id string <name> where hostnames repeat.

If the destination address changes​

The ASA resolved nothing: it sends to the literal address you gave it in step 1. If the domain's addresses change, the ASA keeps sending to the old one. Over UDP the records are lost silently; over TCP or TLS the host shows Not connected in show logging, and — without logging permit-hostdown — new connections through the firewall are blocked. When records stop arriving, resolve the domain again and compare it with the address in show running-config logging. To move the ASA, add the new logging host line first, then remove the old one with no logging host <interface> <old-ip>, then write memory.

If the CA changes​

The ASA trusts only the root you imported. If the endpoint's certificate is ever issued from a different root, the TLS connection fails and the host shows Not connected. Repeat step 4 with the new root; the old trustpoint can be removed with no crypto ca trustpoint FLUENCY-SYSLOG-CA.

Changing the listener on the Fluency side​

A change on the Fluency side can stop the firewall

If an ASA is sending over TCP or TLS without logging permit-hostdown, anything that makes the Fluency listener unreachable stops new connections through that firewall: clearing Syslog TLS or Syslog TCP in Update Config, Delete Syslog Config, or removing a collector's listener. Nothing on the Fluency side warns you who is sending to a protocol. Before changing any of these, confirm with the firewall's owners that logging permit-hostdown is set, or move the ASA off that listener first.

Removing the integration​

Remove the ASA side first, then the Fluency side — the reverse of the usual order, for the reason above:

  1. On the ASA, no logging host <interface> <ip>, then write memory. Removing the TLS trustpoint is optional.
  2. In Fluency, uninstall the application with the red Uninstall button at the foot of its details panel. Leave the syslog listener alone unless nothing else uses it.

Troubleshooting​

SymptomLikely causeFix
Users report the firewall stopped passing new traffic; the ASA logs %ASA-3-201008: Disallowing new connections.A TCP or TLS syslog host is unreachable — or the logging queue is full — and logging permit-hostdown is not setSet logging permit-hostdown now. It takes effect at once, and the ASA logs %ASA-6-414008: New connections are now allowed due to change of logging permit-hostdown policy. Then find out why the host is unreachable (show logging) and write memory. Do not wait for it to clear by itself: Cisco's configuration guide says traffic resumes once the server is back and the queue has drained, but its message reference for 201008 says to disable and restart TCP logging. If traffic stays blocked with permit-hostdown set, remove the host with no logging host — Cisco bug CSCwr10732, fixed in 9.24(1), kept connections blocked despite it.
show logging counter climbs; nothing arrives (UDP)UDP fails silently: wrong address, wrong port, or the wrong interface named in logging hostCheck the address against the resolved domain, the port against the Syslog UDP row, and that the named interface has a route to it.
Host stays Not connected (TLS)The trustpoint does not hold the root the endpoint chains to; the endpoint was reached over IPv6; or the port is not the Syslog TLS portRe-run the openssl check in step 4 and compare with show crypto ca certificates. Use an IPv4 address.
Connected, counter climbing, nothing in the lake (TLS)The ASA is pointed at the TLS RFC 6587 portUse the Syslog TLS port. The RFC 6587 listener drops newline-framed messages without an error.
Admin and VPN events arrive; no connection recordslogging trap is below informational; or the logging host interface has management-only access enabled, which drops 302014, 302015, 106023 and 304001Set logging trap informational; send from an interface without management-only access.
Records arrive with @fields.error Unknown Syslog message IDExpected. The parser extracts fields only from the listed message IDs; everything else is stored with its ID and textNothing to fix. Search by @fields.fid and the message text.
The ASA's counter climbs and the address is right (UDP), but nothing lands in the CiscoASA indexEMBLEM format is on — format emblem on the host line, or logging emblemRemove it (step 6). EMBLEM messages have a colon straight after the priority and are never claimed by the parser.
@source shows an address even though logging device-id hostname is setlogging timestamp is not set, so the listener reads the device ID as the program namelogging timestamp. The device ID is only recognised after a timestamp.
Every firewall appears under one @source addressNo device ID, and the firewalls reach the listener through one NATlogging device-id hostname on each, with logging timestamp.
Events land hours away from when they happenedThe ASA's clock is on local time; the legacy timestamp carries no zoneRun the clock on UTC, or apply the Time Adjustment recipe.
No connection records, though access-list denies and admin events arrive; show running-config logging includes logging flow-export-syslogs disableNetFlow export (NSEL) has replaced the connection syslog messageslogging flow-export-syslogs enable, or accept that connection data lives in the NetFlow export rather than here.
Connection records arrive with @fields.regexError set to trueThe names command is substituting names for addresses, or the connection is IPv6 — the patterns match IPv4 addressesno names restores addresses in the log. IPv6 connections keep their ID and message text only.
Expected permitted flows are missingOnly denies log by defaultAdd log to the access-list entry to produce 106100.
A failover pair reports only from one unitTCP and TLS syslog are not sent from a standby unitExpected. Use UDP if the standby must report too.
Configuration gone after a reloadIt was never savedRe-apply and write memory (ASDM: File → Save Running Configuration to Flash).

Under the hood​

Engineering reference — parsing, header handling and output

What the install creates​

The template (CiscoASAFWLog) installs one processor, CiscoASA-FWLog, running the FPL parser CiscoASA_FWLog ("Standard: Syslog (Event/Traffic logs) from Cisco ASA / FTD devices"); one pipe on the shared SyslogRouter at priority 1000; a data sink to the chosen lake and index; and the index itself, created with the CiscoASA schema. The installed application's Actions list records each object.

How a message is claimed​

The parser claims a record when its message text starts with %ASA or %FTD. If it does not, it retries with the syslog program name prepended — <program>: <message> — because with no device ID the listener takes %ASA-6-302013 as the program name and the rest as the message. Anything that still does not match is returned with abort, which passes it on to the next processor on the router; it does not land in the CiscoASA index.

The header table in step 6 was observed on 2026-10-08 by feeding sample lines to the syslog-ng 3.35.1 build and configuration that the collector installer ships, and applying the parser's claim rule to its output. The lines are in the forms Cisco's documentation shows and that captures of real ASA traffic record — Cisco's own samples disagree with each other on the device-ID separator, so the captures decided:

ASA configurationLine received@sourceTimestamp usedClaimed
neither<166>%ASA-6-302013: …sending addressarrivalyes
logging timestamp<166>Jun 26 2024 01:35:42: %ASA-6-302013: …sending addressASA'syes
logging timestamp + device ID<166>Jun 26 2024 01:35:42 asa-edge-1 : %ASA-6-302013: …asa-edge-1ASA'syes
logging timestamp rfc5424<166>2024-06-26T01:35:42Z: %ASA-6-302013: …sending addressASA'syes
logging timestamp rfc5424 + device ID<166>2024-06-26T01:35:42Z asa-edge-1 : %ASA-6-302013: …asa-edge-1ASA'syes
device ID only<166>asa-edge-1 %ASA-6-302013: …sending addressarrivalyes — device ID read as the program name
EMBLEM<166>:Jun 26 01:35:42 UTC: %ASA-session-6-302013: …sending addressarrivalno

An rfc5424 timestamp carrying an offset (2024-06-26T03:35:42+02:00) is claimed, but the listener keeps the local time and drops the offset.

Parsing​

Fields are written under @fields. Every record gets fid (ASA-<id>) and msg_type (the severity name); @tags is ["ASA", "ASA-<id>"]; @eventType is CiscoASA; @parser is fpl-CiscoASAParser. A recognised ID whose text does not match the expected layout keeps its ID and text and gains regexError: true — the connection and translation patterns match IPv4 addresses only, so IPv6 connection records land this way.

The parser also registers each firewall as an asset on first sight, named after @source, in the group FPL-detect: Cisco ASA/FTD Firewall with machine type Cisco Firewall, and counts records and bytes per device. A firewall whose @source is its address is registered under that address — another reason to set a device ID before the first message arrives.

Output​

The CiscoASA index schema is dynamic, rooted at @fields: each extracted field becomes a column, alongside the raw document, the timestamp and the aliases _source (@source) and _message (@message).

References​

Cisco

Fluency
